Schema euroCV.xsd

schema location:	E:\MI\PED\trabalho\euroCV.xsd
attribute form default:	unqualified
element form default:	qualified

Elements	Complex types	Simple types
euroCV	TcompList	TtipoClass
	Tcontacto	TtipoEmail
	Tdata	TtipoNumero
	Tdatas
	Tendereco
	Tnumero
	Tperiodo

element euroCV

diagram

fotografia informacaoPessoal empregoPretendido experienciaProfissional formacaoAcadProfissional aptidoesCompetPessoais informacaoAdicional anexos

annotation

documentation

European Curriculum Vitae

source

<xs:element name="euroCV">
  <xs:annotation>
    <xs:documentation>European Curriculum Vitae</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="fotografia" type="xs:string" default="\dir1\dir2\file.abc" minOccurs="0">
        <xs:annotation>
          <xs:documentation>path da fotografia, de preferência no formato .jpg</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="informacaoPessoal">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="nome">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="apelidos" type="xs:string"/>
                  <xs:element name="nomes" type="xs:string"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="moradaP" type="Tendereco" maxOccurs="unbounded"/>
            <xs:element name="contactoP" type="Tcontacto" minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="nacionalidade" type="xs:string" minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="dataNascimento" type="Tdata" minOccurs="0"/>
            <xs:element name="sexo" type="xs:string" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="empregoPretendido" type="xs:string">
        <xs:annotation>
          <xs:documentation>Posto a que se candidata ou área de competência</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="experienciaProfissional">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="cargo" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="datasEP" type="Tdatas"/>
                  <xs:element name="funcao" type="xs:string"/>
                  <xs:element name="actividades">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="actividade" maxOccurs="unbounded">
                          <xs:annotation>
                            <xs:documentation>Principais funções e responsabilidades.</xs:documentation>
                          </xs:annotation>
                          <xs:complexType>
                            <xs:sequence>
                              <xs:element name="desigActividade" type="xs:string"/>
                              <xs:element name="infoActiv" type="xs:string" minOccurs="0">
                                <xs:annotation>
                                  <xs:documentation>Qualquer informação adicional. Exemplos: percentagem de tempo da função, duração da função</xs:documentation>
                                </xs:annotation>
                              </xs:element>
                            </xs:sequence>
                          </xs:complexType>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                  <xs:element name="empregador">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="nomeEmp" type="xs:string"/>

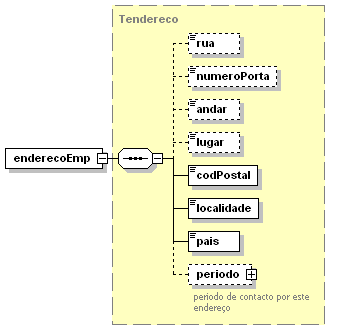

                        <xs:element name="enderecoEmp" type="Tendereco"/>
                        <xs:element name="contactoEmp" type="Tcontacto" minOccurs="0"/>
                        <xs:element name="siteWebEmp" type="xs:string" minOccurs="0"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                  <xs:element name="tipoEmpresaSector" type="xs:string"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="formacaoAcadProfissional">
        <xs:annotation>
          <xs:documentation>Descreve cursos que contribuíram para a formação do candidato (Se atributo Prioridade = 1, esta categoria surge antes de ExperienciaProfissional).</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="curso" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="datasFA" type="Tdatas"/>
                  <xs:element name="qualificacao" type="xs:string">
                    <xs:annotation>
                      <xs:documentation>Designação da qualificação</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="disciplinas">
                    <xs:annotation>
                      <xs:documentation>Listam-se as principais disciplinas do curso</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                      <xs:sequence maxOccurs="unbounded">
                        <xs:element name="grupo">
                          <xs:complexType>
                            <xs:sequence>
                              <xs:element name="desigGrupo" type="xs:string"/>
                              <xs:element name="disciplina" type="xs:string" maxOccurs="unbounded"/>
                            </xs:sequence>
                          </xs:complexType>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                  <xs:element name="orgEnsino">
                    <xs:annotation>
                      <xs:documentation>Informações sobre a instituição de ensino</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="nomeOE" type="xs:string"/>

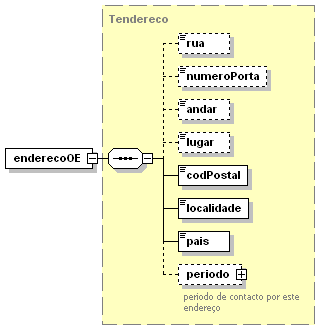

                        <xs:element name="enderecoOE" type="Tendereco"/>
                        <xs:element name="tipoOE" type="xs:string" minOccurs="0"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                  <xs:element name="classif" minOccurs="0">
                    <xs:complexType>
                      <xs:simpleContent>
                        <xs:extension base="xs:int">
                          <xs:attribute name="tipo" type="TtipoClass" use="optional" form="qualified"/>
                        </xs:extension>
                      </xs:simpleContent>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
          <xs:attribute name="prioridade" type="xs:int"/>
        </xs:complexType>
      </xs:element>

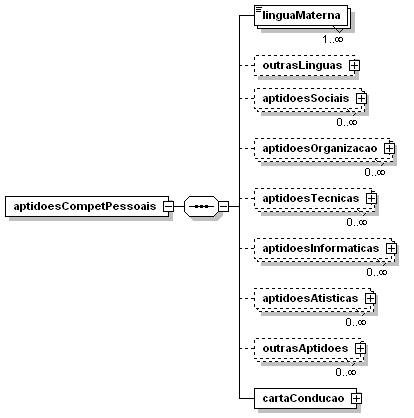

      <xs:element name="aptidoesCompetPessoais">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="linguaMaterna" type="xs:string" maxOccurs="unbounded"/>
            <xs:element name="outrasLinguas" minOccurs="0">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="lingua" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="nomeLingua" type="xs:string"/>
                        <xs:element name="autoavaliacao">
                          <xs:complexType>
                            <xs:sequence>
                              <xs:element name="compOral" type="xs:string"/>
                              <xs:element name="leitura" type="xs:string"/>
                              <xs:element name="interacaoOral" type="xs:string"/>
                              <xs:element name="producaoOral" type="xs:string"/>
                              <xs:element name="escrever" type="xs:string"/>
                            </xs:sequence>
                          </xs:complexType>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>

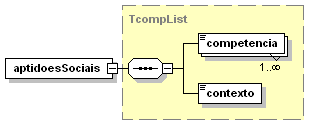

            <xs:element name="aptidoesSociais" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="aptidoesOrganizacao" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>

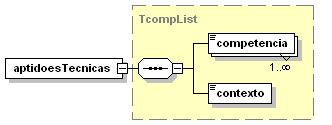

            <xs:element name="aptidoesTecnicas" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>

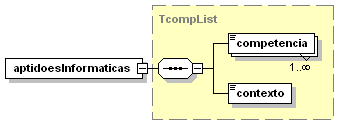

            <xs:element name="aptidoesInformaticas" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>

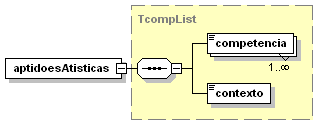

            <xs:element name="aptidoesAtisticas" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>

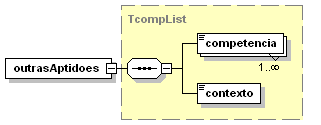

            <xs:element name="outrasAptidoes" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="cartaConducao">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="categoria" type="xs:string" maxOccurs="unbounded"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>

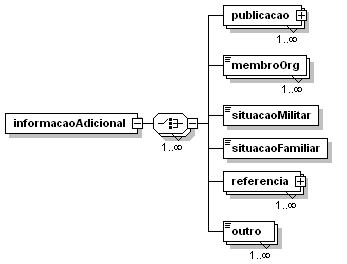

      <xs:element name="informacaoAdicional" minOccurs="0">
        <xs:complexType>
          <xs:choice maxOccurs="unbounded">
            <xs:element name="publicacao" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="descricao" type="xs:string"/>
                  <xs:element name="tipo" type="xs:string"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="membroOrg" type="xs:string" maxOccurs="unbounded"/>
            <xs:element name="situacaoMilitar" type="xs:string"/>
            <xs:element name="situacaoFamiliar" type="xs:string"/>
            <xs:element name="referencia" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="nomeRef" type="xs:string"/>
                  <xs:element name="profissaoRef" type="xs:string"/>
                  <xs:element name="contactoRef" type="Tcontacto"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="outro" type="xs:string" maxOccurs="unbounded"/>
          </xs:choice>
        </xs:complexType>
      </xs:element>
      <xs:element name="anexos" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="anexo" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="designacao" type="xs:string"/>
                  <xs:element name="numeroAnexo" type="xs:string"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/fotografia

isRef	0
content	simple
default	\dir1\dir2\file.abc

annotation

documentation

path da fotografia, de preferência no formato .jpg

source

<xs:element name="fotografia" type="xs:string" default="\dir1\dir2\file.abc" minOccurs="0">
  <xs:annotation>
    <xs:documentation>path da fotografia, de preferência no formato .jpg</xs:documentation>
  </xs:annotation>
</xs:element>

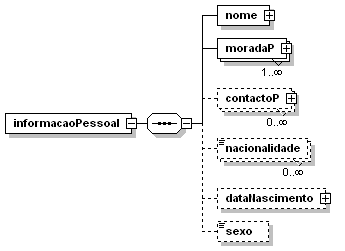

element euroCV/informacaoPessoal

diagram

properties

isRef	0
content	complex

children

nome moradaP contactoP nacionalidade dataNascimento sexo

source

<xs:element name="informacaoPessoal">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="nome">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="apelidos" type="xs:string"/>
            <xs:element name="nomes" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="moradaP" type="Tendereco" maxOccurs="unbounded"/>
      <xs:element name="contactoP" type="Tcontacto" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="nacionalidade" type="xs:string" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="dataNascimento" type="Tdata" minOccurs="0"/>
      <xs:element name="sexo" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/informacaoPessoal/nome

diagram

properties

isRef	0
content	complex

children

apelidos nomes

source

<xs:element name="nome">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="apelidos" type="xs:string"/>
      <xs:element name="nomes" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/informacaoPessoal/nome/apelidos

isRef	0
content	simple

source

<xs:element name="apelidos" type="xs:string"/>

element euroCV/informacaoPessoal/nome/nomes

isRef	0
content	simple

source

<xs:element name="nomes" type="xs:string"/>

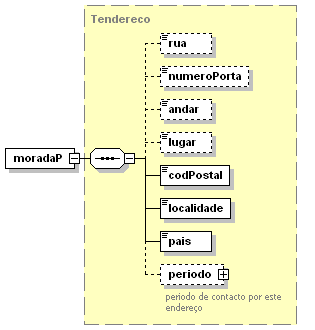

element euroCV/informacaoPessoal/moradaP

isRef	0
content	complex

children

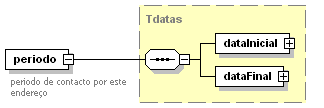

rua numeroPorta andar lugar codPostal localidade pais periodo

source

<xs:element name="moradaP" type="Tendereco" maxOccurs="unbounded"/>

element euroCV/informacaoPessoal/contactoP

isRef	0
content	complex

children

telefone fax email

source

<xs:element name="contactoP" type="Tcontacto" minOccurs="0" maxOccurs="unbounded"/>

element euroCV/informacaoPessoal/nacionalidade

isRef	0
content	simple

source

<xs:element name="nacionalidade" type="xs:string" minOccurs="0" maxOccurs="unbounded"/>

element euroCV/informacaoPessoal/dataNascimento

isRef	0
content	complex

children

dia mes ano

source

<xs:element name="dataNascimento" type="Tdata" minOccurs="0"/>

element euroCV/informacaoPessoal/sexo

isRef	0
content	simple

source

<xs:element name="sexo" type="xs:string" minOccurs="0"/>

element euroCV/empregoPretendido

isRef	0
content	simple

annotation

documentation

Posto a que se candidata ou área de competência

source

<xs:element name="empregoPretendido" type="xs:string">
  <xs:annotation>
    <xs:documentation>Posto a que se candidata ou área de competência</xs:documentation>
  </xs:annotation>
</xs:element>

element euroCV/experienciaProfissional

diagram

properties

isRef	0
content	complex

children

cargo

source

<xs:element name="experienciaProfissional">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="cargo" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="datasEP" type="Tdatas"/>
            <xs:element name="funcao" type="xs:string"/>
            <xs:element name="actividades">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="actividade" maxOccurs="unbounded">
                    <xs:annotation>
                      <xs:documentation>Principais funções e responsabilidades.</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="desigActividade" type="xs:string"/>
                        <xs:element name="infoActiv" type="xs:string" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Qualquer informação adicional. Exemplos: percentagem de tempo da função, duração da função</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="empregador">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="nomeEmp" type="xs:string"/>
                  <xs:element name="enderecoEmp" type="Tendereco"/>
                  <xs:element name="contactoEmp" type="Tcontacto" minOccurs="0"/>
                  <xs:element name="siteWebEmp" type="xs:string" minOccurs="0"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="tipoEmpresaSector" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/experienciaProfissional/cargo

diagram

properties

isRef	0
content	complex

children

datasEP funcao actividades empregador tipoEmpresaSector

source

<xs:element name="cargo" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="datasEP" type="Tdatas"/>
      <xs:element name="funcao" type="xs:string"/>
      <xs:element name="actividades">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="actividade" maxOccurs="unbounded">
              <xs:annotation>
                <xs:documentation>Principais funções e responsabilidades.</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="desigActividade" type="xs:string"/>
                  <xs:element name="infoActiv" type="xs:string" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>Qualquer informação adicional. Exemplos: percentagem de tempo da função, duração da função</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="empregador">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="nomeEmp" type="xs:string"/>
            <xs:element name="enderecoEmp" type="Tendereco"/>
            <xs:element name="contactoEmp" type="Tcontacto" minOccurs="0"/>
            <xs:element name="siteWebEmp" type="xs:string" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="tipoEmpresaSector" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/experienciaProfissional/cargo/datasEP

isRef	0
content	complex

children

dataInicial dataFinal

source

<xs:element name="datasEP" type="Tdatas"/>

element euroCV/experienciaProfissional/cargo/funcao

isRef	0
content	simple

source

<xs:element name="funcao" type="xs:string"/>

element euroCV/experienciaProfissional/cargo/actividades

diagram

properties

isRef	0
content	complex

children

actividade

source

<xs:element name="actividades">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="actividade" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Principais funções e responsabilidades.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="desigActividade" type="xs:string"/>
            <xs:element name="infoActiv" type="xs:string" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Qualquer informação adicional. Exemplos: percentagem de tempo da função, duração da função</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/experienciaProfissional/cargo/actividades/actividade

diagram

properties

isRef	0
content	complex

children

desigActividade infoActiv

annotation

documentation

Principais funções e responsabilidades.

source

<xs:element name="actividade" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Principais funções e responsabilidades.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="desigActividade" type="xs:string"/>
      <xs:element name="infoActiv" type="xs:string" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Qualquer informação adicional. Exemplos: percentagem de tempo da função, duração da função</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/experienciaProfissional/cargo/actividades/actividade/desigActividade

isRef	0
content	simple

source

<xs:element name="desigActividade" type="xs:string"/>

element euroCV/experienciaProfissional/cargo/actividades/actividade/infoActiv

isRef	0
content	simple

annotation

documentation

Qualquer informação adicional. Exemplos: percentagem de tempo da função, duração da função

source

<xs:element name="infoActiv" type="xs:string" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Qualquer informação adicional. Exemplos: percentagem de tempo da função, duração da função</xs:documentation>
  </xs:annotation>
</xs:element>

element euroCV/experienciaProfissional/cargo/empregador

diagram

properties

isRef	0
content	complex

children

nomeEmp enderecoEmp contactoEmp siteWebEmp

source

<xs:element name="empregador">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="nomeEmp" type="xs:string"/>
      <xs:element name="enderecoEmp" type="Tendereco"/>
      <xs:element name="contactoEmp" type="Tcontacto" minOccurs="0"/>
      <xs:element name="siteWebEmp" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/experienciaProfissional/cargo/empregador/nomeEmp

isRef	0
content	simple

source

<xs:element name="nomeEmp" type="xs:string"/>

element euroCV/experienciaProfissional/cargo/empregador/enderecoEmp

isRef	0
content	complex

children

rua numeroPorta andar lugar codPostal localidade pais periodo

source

<xs:element name="enderecoEmp" type="Tendereco"/>

element euroCV/experienciaProfissional/cargo/empregador/contactoEmp

isRef	0
content	complex

children

telefone fax email

source

<xs:element name="contactoEmp" type="Tcontacto" minOccurs="0"/>

element euroCV/experienciaProfissional/cargo/empregador/siteWebEmp

isRef	0
content	simple

source

<xs:element name="siteWebEmp" type="xs:string" minOccurs="0"/>

element euroCV/experienciaProfissional/cargo/tipoEmpresaSector

isRef	0
content	simple

source

<xs:element name="tipoEmpresaSector" type="xs:string"/>

element euroCV/formacaoAcadProfissional

diagram

properties

isRef	0
content	complex

children

curso

attributes

Name	Type	Use	Default	Fixed	Annotation
prioridade	xs:int

annotation

documentation

Descreve cursos que contribuíram para a formação do candidato (Se atributo Prioridade = 1, esta categoria surge antes de ExperienciaProfissional).

source

<xs:element name="formacaoAcadProfissional">
  <xs:annotation>
    <xs:documentation>Descreve cursos que contribuíram para a formação do candidato (Se atributo Prioridade = 1, esta categoria surge antes de ExperienciaProfissional).</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="curso" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="datasFA" type="Tdatas"/>
            <xs:element name="qualificacao" type="xs:string">
              <xs:annotation>
                <xs:documentation>Designação da qualificação</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="disciplinas">
              <xs:annotation>
                <xs:documentation>Listam-se as principais disciplinas do curso</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence maxOccurs="unbounded">
                  <xs:element name="grupo">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="desigGrupo" type="xs:string"/>
                        <xs:element name="disciplina" type="xs:string" maxOccurs="unbounded"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="orgEnsino">
              <xs:annotation>
                <xs:documentation>Informações sobre a instituição de ensino</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="nomeOE" type="xs:string"/>
                  <xs:element name="enderecoOE" type="Tendereco"/>
                  <xs:element name="tipoOE" type="xs:string" minOccurs="0"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="classif" minOccurs="0">
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="xs:int">
                    <xs:attribute name="tipo" type="TtipoClass" use="optional" form="qualified"/>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="prioridade" type="xs:int"/>
  </xs:complexType>
</xs:element>

element euroCV/formacaoAcadProfissional/curso

diagram

properties

isRef	0
content	complex

children

datasFA qualificacao disciplinas orgEnsino classif

source

<xs:element name="curso" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="datasFA" type="Tdatas"/>
      <xs:element name="qualificacao" type="xs:string">
        <xs:annotation>
          <xs:documentation>Designação da qualificação</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="disciplinas">
        <xs:annotation>
          <xs:documentation>Listam-se as principais disciplinas do curso</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence maxOccurs="unbounded">
            <xs:element name="grupo">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="desigGrupo" type="xs:string"/>
                  <xs:element name="disciplina" type="xs:string" maxOccurs="unbounded"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="orgEnsino">
        <xs:annotation>
          <xs:documentation>Informações sobre a instituição de ensino</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="nomeOE" type="xs:string"/>
            <xs:element name="enderecoOE" type="Tendereco"/>
            <xs:element name="tipoOE" type="xs:string" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="classif" minOccurs="0">
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="xs:int">
              <xs:attribute name="tipo" type="TtipoClass" use="optional" form="qualified"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/formacaoAcadProfissional/curso/datasFA

isRef	0
content	complex

children

dataInicial dataFinal

source

<xs:element name="datasFA" type="Tdatas"/>

element euroCV/formacaoAcadProfissional/curso/qualificacao

isRef	0
content	simple

annotation

documentation

Designação da qualificação

source

<xs:element name="qualificacao" type="xs:string">
  <xs:annotation>
    <xs:documentation>Designação da qualificação</xs:documentation>
  </xs:annotation>
</xs:element>

element euroCV/formacaoAcadProfissional/curso/disciplinas

diagram

properties

isRef	0
content	complex

Listam-se as principais disciplinas do curso

source

<xs:element name="disciplinas">
  <xs:annotation>
    <xs:documentation>Listam-se as principais disciplinas do curso</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element name="grupo">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="desigGrupo" type="xs:string"/>
            <xs:element name="disciplina" type="xs:string" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/formacaoAcadProfissional/curso/disciplinas/grupo

diagram

properties

isRef	0
content	complex

children

desigGrupo disciplina

source

<xs:element name="grupo">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="desigGrupo" type="xs:string"/>
      <xs:element name="disciplina" type="xs:string" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/formacaoAcadProfissional/curso/disciplinas/grupo/desigGrupo

isRef	0
content	simple

source

<xs:element name="desigGrupo" type="xs:string"/>

element euroCV/formacaoAcadProfissional/curso/disciplinas/grupo/disciplina

isRef	0
content	simple

source

<xs:element name="disciplina" type="xs:string" maxOccurs="unbounded"/>

element euroCV/formacaoAcadProfissional/curso/orgEnsino

diagram

properties

isRef	0
content	complex

children

nomeOE enderecoOE tipoOE

annotation

documentation

Informações sobre a instituição de ensino

source

<xs:element name="orgEnsino">
  <xs:annotation>
    <xs:documentation>Informações sobre a instituição de ensino</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="nomeOE" type="xs:string"/>
      <xs:element name="enderecoOE" type="Tendereco"/>
      <xs:element name="tipoOE" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/formacaoAcadProfissional/curso/orgEnsino/nomeOE

isRef	0
content	simple

source

<xs:element name="nomeOE" type="xs:string"/>

element euroCV/formacaoAcadProfissional/curso/orgEnsino/enderecoOE

isRef	0
content	complex

children

rua numeroPorta andar lugar codPostal localidade pais periodo

source

<xs:element name="enderecoOE" type="Tendereco"/>

element euroCV/formacaoAcadProfissional/curso/orgEnsino/tipoOE

isRef	0
content	simple

source

<xs:element name="tipoOE" type="xs:string" minOccurs="0"/>

element euroCV/formacaoAcadProfissional/curso/classif

isRef	0
content	complex

attributes

Name	Type	Use	Default	Fixed	Annotation
tipo	TtipoClass	optional

source

<xs:element name="classif" minOccurs="0">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:int">
        <xs:attribute name="tipo" type="TtipoClass" use="optional" form="qualified"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

element euroCV/aptidoesCompetPessoais

diagram

properties

isRef	0
content	complex

children

linguaMaterna outrasLinguas aptidoesSociais aptidoesOrganizacao aptidoesTecnicas aptidoesInformaticas aptidoesAtisticas outrasAptidoes cartaConducao

source

<xs:element name="aptidoesCompetPessoais">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="linguaMaterna" type="xs:string" maxOccurs="unbounded"/>
      <xs:element name="outrasLinguas" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="lingua" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="nomeLingua" type="xs:string"/>
                  <xs:element name="autoavaliacao">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="compOral" type="xs:string"/>
                        <xs:element name="leitura" type="xs:string"/>
                        <xs:element name="interacaoOral" type="xs:string"/>
                        <xs:element name="producaoOral" type="xs:string"/>
                        <xs:element name="escrever" type="xs:string"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="aptidoesSociais" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="aptidoesOrganizacao" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="aptidoesTecnicas" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="aptidoesInformaticas" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="aptidoesAtisticas" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="outrasAptidoes" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="cartaConducao">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="categoria" type="xs:string" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/aptidoesCompetPessoais/linguaMaterna

isRef	0
content	simple

source

<xs:element name="linguaMaterna" type="xs:string" maxOccurs="unbounded"/>

element euroCV/aptidoesCompetPessoais/outrasLinguas

diagram

properties

isRef	0
content	complex

children

lingua

source

<xs:element name="outrasLinguas" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="lingua" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="nomeLingua" type="xs:string"/>
            <xs:element name="autoavaliacao">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="compOral" type="xs:string"/>
                  <xs:element name="leitura" type="xs:string"/>
                  <xs:element name="interacaoOral" type="xs:string"/>
                  <xs:element name="producaoOral" type="xs:string"/>
                  <xs:element name="escrever" type="xs:string"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/aptidoesCompetPessoais/outrasLinguas/lingua

diagram

properties

isRef	0
content	complex

children

nomeLingua autoavaliacao

source

<xs:element name="lingua" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="nomeLingua" type="xs:string"/>
      <xs:element name="autoavaliacao">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="compOral" type="xs:string"/>
            <xs:element name="leitura" type="xs:string"/>
            <xs:element name="interacaoOral" type="xs:string"/>
            <xs:element name="producaoOral" type="xs:string"/>
            <xs:element name="escrever" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/aptidoesCompetPessoais/outrasLinguas/lingua/nomeLingua

isRef	0
content	simple

source

<xs:element name="nomeLingua" type="xs:string"/>

element euroCV/aptidoesCompetPessoais/outrasLinguas/lingua/autoavaliacao

diagram

properties

isRef	0
content	complex

children

compOral leitura interacaoOral producaoOral escrever

source

<xs:element name="autoavaliacao">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="compOral" type="xs:string"/>
      <xs:element name="leitura" type="xs:string"/>
      <xs:element name="interacaoOral" type="xs:string"/>
      <xs:element name="producaoOral" type="xs:string"/>
      <xs:element name="escrever" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/aptidoesCompetPessoais/outrasLinguas/lingua/autoavaliacao/compOral

isRef	0
content	simple

source

<xs:element name="compOral" type="xs:string"/>

element euroCV/aptidoesCompetPessoais/outrasLinguas/lingua/autoavaliacao/leitura

isRef	0
content	simple

source

<xs:element name="leitura" type="xs:string"/>

element euroCV/aptidoesCompetPessoais/outrasLinguas/lingua/autoavaliacao/interacaoOral

isRef	0
content	simple

source

<xs:element name="interacaoOral" type="xs:string"/>

element euroCV/aptidoesCompetPessoais/outrasLinguas/lingua/autoavaliacao/producaoOral

isRef	0
content	simple

source

<xs:element name="producaoOral" type="xs:string"/>

element euroCV/aptidoesCompetPessoais/outrasLinguas/lingua/autoavaliacao/escrever

isRef	0
content	simple

source

<xs:element name="escrever" type="xs:string"/>

element euroCV/aptidoesCompetPessoais/aptidoesSociais

isRef	0
content	complex

children

competencia contexto

source

<xs:element name="aptidoesSociais" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>

element euroCV/aptidoesCompetPessoais/aptidoesOrganizacao

isRef	0
content	complex

children

competencia contexto

source

<xs:element name="aptidoesOrganizacao" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>

element euroCV/aptidoesCompetPessoais/aptidoesTecnicas

isRef	0
content	complex

children

competencia contexto

source

<xs:element name="aptidoesTecnicas" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>

element euroCV/aptidoesCompetPessoais/aptidoesInformaticas

isRef	0
content	complex

children

competencia contexto

source

<xs:element name="aptidoesInformaticas" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>

element euroCV/aptidoesCompetPessoais/aptidoesAtisticas

isRef	0
content	complex

children

competencia contexto

source

<xs:element name="aptidoesAtisticas" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>

element euroCV/aptidoesCompetPessoais/outrasAptidoes

isRef	0
content	complex

children

competencia contexto

source

<xs:element name="outrasAptidoes" type="TcompList" minOccurs="0" maxOccurs="unbounded"/>

element euroCV/aptidoesCompetPessoais/cartaConducao

diagram

properties

isRef	0
content	complex

children

categoria

source

<xs:element name="cartaConducao">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="categoria" type="xs:string" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/aptidoesCompetPessoais/cartaConducao/categoria

isRef	0
content	simple

source

<xs:element name="categoria" type="xs:string" maxOccurs="unbounded"/>

element euroCV/informacaoAdicional

diagram

properties

isRef	0
content	complex

children

publicacao membroOrg situacaoMilitar situacaoFamiliar referencia outro

source

<xs:element name="informacaoAdicional" minOccurs="0">
  <xs:complexType>
    <xs:choice maxOccurs="unbounded">
      <xs:element name="publicacao" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="descricao" type="xs:string"/>
            <xs:element name="tipo" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="membroOrg" type="xs:string" maxOccurs="unbounded"/>
      <xs:element name="situacaoMilitar" type="xs:string"/>
      <xs:element name="situacaoFamiliar" type="xs:string"/>
      <xs:element name="referencia" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="nomeRef" type="xs:string"/>
            <xs:element name="profissaoRef" type="xs:string"/>
            <xs:element name="contactoRef" type="Tcontacto"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="outro" type="xs:string" maxOccurs="unbounded"/>
    </xs:choice>
  </xs:complexType>
</xs:element>

element euroCV/informacaoAdicional/publicacao

diagram

properties

isRef	0
content	complex

children

descricao tipo

source

<xs:element name="publicacao" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="descricao" type="xs:string"/>
      <xs:element name="tipo" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/informacaoAdicional/publicacao/descricao

isRef	0
content	simple

source

<xs:element name="descricao" type="xs:string"/>

element euroCV/informacaoAdicional/publicacao/tipo

isRef	0
content	simple

source

<xs:element name="tipo" type="xs:string"/>

element euroCV/informacaoAdicional/membroOrg

isRef	0
content	simple

source

<xs:element name="membroOrg" type="xs:string" maxOccurs="unbounded"/>

element euroCV/informacaoAdicional/situacaoMilitar

isRef	0
content	simple

source

<xs:element name="situacaoMilitar" type="xs:string"/>

element euroCV/informacaoAdicional/situacaoFamiliar

isRef	0
content	simple

source

<xs:element name="situacaoFamiliar" type="xs:string"/>

element euroCV/informacaoAdicional/referencia

diagram

properties

isRef	0
content	complex

children

nomeRef profissaoRef contactoRef

source

<xs:element name="referencia" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="nomeRef" type="xs:string"/>
      <xs:element name="profissaoRef" type="xs:string"/>
      <xs:element name="contactoRef" type="Tcontacto"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/informacaoAdicional/referencia/nomeRef

isRef	0
content	simple

source

<xs:element name="nomeRef" type="xs:string"/>

element euroCV/informacaoAdicional/referencia/profissaoRef

isRef	0
content	simple

source

<xs:element name="profissaoRef" type="xs:string"/>

element euroCV/informacaoAdicional/referencia/contactoRef

isRef	0
content	complex

children

telefone fax email

source

<xs:element name="contactoRef" type="Tcontacto"/>

element euroCV/informacaoAdicional/outro

isRef	0
content	simple

source

<xs:element name="outro" type="xs:string" maxOccurs="unbounded"/>

element euroCV/anexos

diagram

properties

isRef	0
content	complex

children

anexo

source

<xs:element name="anexos" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="anexo" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="designacao" type="xs:string"/>
            <xs:element name="numeroAnexo" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/anexos/anexo

diagram

properties

isRef	0
content	complex

children

designacao numeroAnexo

source

<xs:element name="anexo" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="designacao" type="xs:string"/>
      <xs:element name="numeroAnexo" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element euroCV/anexos/anexo/designacao

isRef	0
content	simple

source

<xs:element name="designacao" type="xs:string"/>

element euroCV/anexos/anexo/numeroAnexo

isRef	0
content	simple

source

<xs:element name="numeroAnexo" type="xs:string"/>

complexType TcompList

euroCV/aptidoesCompetPessoais/aptidoesAtisticas euroCV/aptidoesCompetPessoais/aptidoesInformaticas euroCV/aptidoesCompetPessoais/aptidoesOrganizacao euroCV/aptidoesCompetPessoais/aptidoesSociais euroCV/aptidoesCompetPessoais/aptidoesTecnicas euroCV/aptidoesCompetPessoais/outrasAptidoes

annotation

documentation

Tipo complexo para representação de listas das diversas competências

source

<xs:complexType name="TcompList">
  <xs:annotation>
    <xs:documentation>Tipo complexo para representação de listas das diversas competências</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="competencia" type="xs:string" maxOccurs="unbounded"/>
    <xs:element name="contexto" type="xs:string"/>
  </xs:sequence>
</xs:complexType>

element TcompList/competencia

isRef	0
content	simple

source

<xs:element name="competencia" type="xs:string" maxOccurs="unbounded"/>

element TcompList/contexto

isRef	0
content	simple

source

<xs:element name="contexto" type="xs:string"/>

complexType Tcontacto

euroCV/experienciaProfissional/cargo/empregador/contactoEmp euroCV/informacaoPessoal/contactoP euroCV/informacaoAdicional/referencia/contactoRef

annotation

documentation

Tipo complexo para representação de contactos

source

<xs:complexType name="Tcontacto">
  <xs:annotation>
    <xs:documentation>Tipo complexo para representação de contactos</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="telefone" minOccurs="0" maxOccurs="unbounded">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="numeroT" type="Tnumero"/>
          <xs:element name="periodoContactoT" type="Tperiodo" minOccurs="0"/>
        </xs:sequence>
        <xs:attribute name="tipoN" type="TtipoNumero" use="required"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="fax" minOccurs="0" maxOccurs="unbounded">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="numeroF" type="Tnumero"/>
          <xs:element name="periodoF" type="Tperiodo" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="email" minOccurs="0" maxOccurs="unbounded">
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="xs:string">
            <xs:attribute name="tipo" type="TtipoEmail"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element Tcontacto/telefone

diagram

properties

isRef	0
content	complex

children

numeroT periodoContactoT

attributes

Name	Type	Use	Default	Fixed	Annotation
tipoN	TtipoNumero	required

source

<xs:element name="telefone" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="numeroT" type="Tnumero"/>
      <xs:element name="periodoContactoT" type="Tperiodo" minOccurs="0"/>
    </xs:sequence>
    <xs:attribute name="tipoN" type="TtipoNumero" use="required"/>
  </xs:complexType>
</xs:element>

element Tcontacto/telefone/numeroT

isRef	0
content	complex

children

prefixoPais prefixoRegional numero

source

<xs:element name="numeroT" type="Tnumero"/>

element Tcontacto/telefone/periodoContactoT

isRef	0
content	complex

children

dias horas

source

<xs:element name="periodoContactoT" type="Tperiodo" minOccurs="0"/>

element Tcontacto/fax

diagram

properties

isRef	0
content	complex

children

numeroF periodoF

source

<xs:element name="fax" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="numeroF" type="Tnumero"/>
      <xs:element name="periodoF" type="Tperiodo" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element Tcontacto/fax/numeroF

isRef	0
content	complex

children

prefixoPais prefixoRegional numero

source

<xs:element name="numeroF" type="Tnumero"/>

element Tcontacto/fax/periodoF

isRef	0
content	complex

children

dias horas

source

<xs:element name="periodoF" type="Tperiodo" minOccurs="0"/>

element Tcontacto/email

diagram

type

extension of xs:string

properties

isRef	0
content	complex

attributes

Name	Type	Use	Default	Fixed	Annotation
tipo	TtipoEmail

source

<xs:element name="email" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:string">
        <xs:attribute name="tipo" type="TtipoEmail"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Tdatas/dataFinal Tdatas/dataInicial euroCV/informacaoPessoal/dataNascimento

source

<xs:complexType name="Tdata">
  <xs:sequence>
    <xs:element name="dia" type="xs:int" minOccurs="0"/>
    <xs:element name="mes" type="xs:string" minOccurs="0"/>
    <xs:element name="ano" type="xs:int" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

isRef	0
content	simple

source

<xs:element name="dia" type="xs:int" minOccurs="0"/>

isRef	0
content	simple

source

<xs:element name="mes" type="xs:string" minOccurs="0"/>

isRef	0
content	simple

source

<xs:element name="ano" type="xs:int" minOccurs="0"/>

complexType Tdatas

diagram

children

dataInicial dataFinal

used by

elements

euroCV/experienciaProfissional/cargo/datasEP euroCV/formacaoAcadProfissional/curso/datasFA Tendereco/periodo

annotation

documentation

Tipo complexo para representação de um intervalo de datas

source

<xs:complexType name="Tdatas">
  <xs:annotation>
    <xs:documentation>Tipo complexo para representação de um intervalo de datas</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="dataInicial">
      <xs:complexType>
        <xs:complexContent>
          <xs:extension base="Tdata">
            <xs:attribute name="dt" type="xs:string"/>
          </xs:extension>
        </xs:complexContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="dataFinal">
      <xs:complexType>
        <xs:complexContent>
          <xs:extension base="Tdata">
            <xs:attribute name="dt" type="xs:string"/>
          </xs:extension>
        </xs:complexContent>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element Tdatas/dataInicial

isRef	0
content	complex

children

dia mes ano

attributes

Name	Type	Use	Default	Fixed	Annotation
dt	xs:string

source

<xs:element name="dataInicial">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="Tdata">
        <xs:attribute name="dt" type="xs:string"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element Tdatas/dataFinal

isRef	0
content	complex

children

dia mes ano

attributes

Name	Type	Use	Default	Fixed	Annotation
dt	xs:string

source

<xs:element name="dataFinal">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="Tdata">
        <xs:attribute name="dt" type="xs:string"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

complexType Tendereco

diagram

children

rua numeroPorta andar lugar codPostal localidade pais periodo

used by

elements

euroCV/experienciaProfissional/cargo/empregador/enderecoEmp euroCV/formacaoAcadProfissional/curso/orgEnsino/enderecoOE euroCV/informacaoPessoal/moradaP

annotation

documentation

Tipo complexo para representação de um endereço

source

<xs:complexType name="Tendereco">
  <xs:annotation>
    <xs:documentation>Tipo complexo para representação de um endereço</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="rua" type="xs:string" minOccurs="0"/>
    <xs:element name="numeroPorta" type="xs:int" minOccurs="0"/>
    <xs:element name="andar" type="xs:string" minOccurs="0"/>
    <xs:element name="lugar" type="xs:string" minOccurs="0"/>
    <xs:element name="codPostal" type="xs:string"/>
    <xs:element name="localidade" type="xs:string"/>
    <xs:element name="pais" type="xs:string"/>
    <xs:element name="periodo" type="Tdatas" minOccurs="0">
      <xs:annotation>
        <xs:documentation>periodo de contacto por este endereço</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element Tendereco/rua

isRef	0
content	simple

source

<xs:element name="rua" type="xs:string" minOccurs="0"/>

element Tendereco/numeroPorta

isRef	0
content	simple

source

<xs:element name="numeroPorta" type="xs:int" minOccurs="0"/>

element Tendereco/andar

isRef	0
content	simple

source

<xs:element name="andar" type="xs:string" minOccurs="0"/>

element Tendereco/lugar

isRef	0
content	simple

source

<xs:element name="lugar" type="xs:string" minOccurs="0"/>

element Tendereco/codPostal

isRef	0
content	simple

source

<xs:element name="codPostal" type="xs:string"/>

element Tendereco/localidade

isRef	0
content	simple

source

<xs:element name="localidade" type="xs:string"/>

element Tendereco/pais

isRef	0
content	simple

source

<xs:element name="pais" type="xs:string"/>

element Tendereco/periodo

isRef	0
content	complex

children

dataInicial dataFinal

annotation

documentation

periodo de contacto por este endereço

source

<xs:element name="periodo" type="Tdatas" minOccurs="0">
  <xs:annotation>
    <xs:documentation>periodo de contacto por este endereço</xs:documentation>
  </xs:annotation>
</xs:element>

complexType Tnumero

diagram

children

prefixoPais prefixoRegional numero

used by

elements

Tcontacto/fax/numeroF Tcontacto/telefone/numeroT

annotation

documentation

Tipo complexo para representar números de telefone e de fax

source

<xs:complexType name="Tnumero">
  <xs:annotation>
    <xs:documentation>Tipo complexo para representar números de telefone e de fax</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="prefixoPais" type="xs:int" minOccurs="0"/>
    <xs:element name="prefixoRegional" type="xs:int" minOccurs="0"/>
    <xs:element name="numero">
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="xs:long"/>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element Tnumero/prefixoPais

isRef	0
content	simple

source

<xs:element name="prefixoPais" type="xs:int" minOccurs="0"/>

element Tnumero/prefixoRegional

isRef	0
content	simple

source

<xs:element name="prefixoRegional" type="xs:int" minOccurs="0"/>

element Tnumero/numero

isRef	0
content	complex

source

<xs:element name="numero">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:long"/>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Tcontacto/telefone/periodoContactoT Tcontacto/fax/periodoF

annotation

documentation

Tipo complexo para representar periodos de contacto

source

<xs:complexType name="Tperiodo">
  <xs:annotation>
    <xs:documentation>Tipo complexo para representar periodos de contacto</xs:documentation>
  </xs:annotation>
  <xs:sequence maxOccurs="unbounded">
    <xs:element name="dias" type="xs:string"/>
    <xs:element name="horas" type="xs:string"/>
  </xs:sequence>
</xs:complexType>

element Tperiodo/dias

isRef	0
content	simple

source

<xs:element name="dias" type="xs:string"/>

element Tperiodo/horas

isRef	0
content	simple

source

<xs:element name="horas" type="xs:string"/>

simpleType TtipoClass

euroCV/formacaoAcadProfissional/curso/classif/@tipo

source

<xs:simpleType name="TtipoClass" final="list">
  <xs:restriction base="xs:string"/>
</xs:simpleType>

simpleType TtipoEmail

type

restriction of xs:string

Tcontacto/email/@tipo

facets

enumeration	Profissional
enumeration	Pessoal

annotation

documentation

Especifica se email é do tipo Profissional ou Pessoal

source

<xs:simpleType name="TtipoEmail" final="list">
  <xs:annotation>
    <xs:documentation>Especifica se email é do tipo Profissional ou Pessoal</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Profissional"/>
    <xs:enumeration value="Pessoal"/>
  </xs:restriction>
</xs:simpleType>

simpleType TtipoNumero

type

restriction of xs:string

Tcontacto/telefone/@tipoN

facets

enumeration	Fixo
enumeration	Móvel

annotation

documentation

Especifica se numero corresponde a telemovel ou a telefone fixo

source

<xs:simpleType name="TtipoNumero" final="list">
  <xs:annotation>
    <xs:documentation>Especifica se numero corresponde a telemovel ou a telefone fixo</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Fixo"/>
    <xs:enumeration value="Móvel"/>
  </xs:restriction>
</xs:simpleType>

XML Schema documentation generated with XMLSpy Schema Editor http://www.altova.com/xmlspy
